COUGAR QBX
Enjoy full gaming and media capabilities wherever you want.
The QBX?s elegant, hairline surface front panel is the face of an ultra-compact case with one of the most stylish designs a pc case has ever seen. With the ability to house a full powered gaming computer with the latest technology, it allows the user to install up to 7 fans , thus providing the absolute best cooling on the market for a case of its kind.
SIZE MATTERS
A full, pro-level computer, including support for high-end graphic cards, up to 4 SSD, 7 fans with water cooling and much more, all in a compact case. QBX can fit almost anywhere you could want to put a computer in.
SUPERIOR EXPANDABILITY

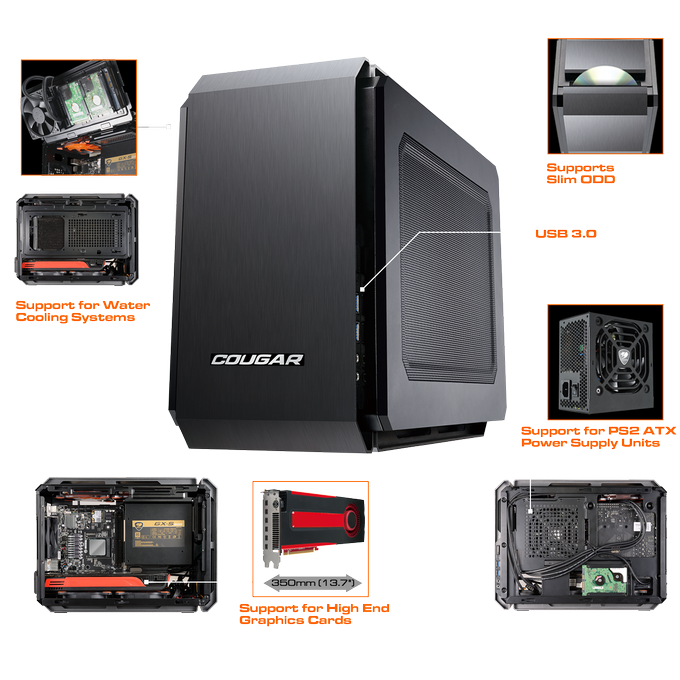

See and believe. The ultra-compact design of the QBX can host the best gaming technology of the market and keep it well cooled:
Support for up to 350mm Graphic Cards: Run everything on the market, and do it smoothly.
Supports PS2 ATX Power Supply Units (depth up to 140mm): All the fuel you need.
Supports Mini-ITX Motherboards: Full Capabilities, Minimum Space.
USB 3.0 (two ports): Enjoy the full power of new generation peripherals.
1 Slim Optical Disc Drive Bay (Slim ODD) / SSD bay: Enjoy disc media formats or add more storage Space for a 3.5?HDD + Up to four 2.5? SSD or HDD: A world of High Speed Storage.
SUPERIOR COOLING
Up to 7 fans with Water Cooling.
Pro-Cooling design: the openings and fan placements are located to ensure a constant fresh air flow.
Independent Power Supply Airflow: The air does not even get into the case, it cools your PSU and gets out again.
Compatible with Water Cooling Systems (Radiators up to 240mm with a single 120mm fan)
Specifications
Case Type Mini ITX Case
Motherboard Type Mini ITX
Dimension (WxHxD)
7.01 x 10.24 x 14.49 (inch)
178 x 260 x 368 (mm)
Optical Disk Drive (ODD) Type Supports ONLY Slim ODD
3.5" Internal Drive Bay (HDD) 1
2.5" Drive Bay (HDD/SSD) 4
Expansion Slots (For example for Graphics Card) 1
I/O Panel 2 x USB3.0 / HD audio
Cool ing System
Max Installed : 7pcs Fans
Front 80mm Fan x 1 (optional)
Top 120mm Fans x 2 (optional)
Rear 90mm Fan x 1 (pre-installed)
Bottom 120mm Fans x 2 (optional)
Left Side
120mm Fan x 1
or
240mm radiator with a single 120mm fan
or
120mm radiator with a 120mm fan
Cable management system
Cable feedthrough on the motherboard tray for easily routing and hiding cables.
Fan Filter (Cleanable)
1 x Bottom Filter (pre-installed and removable)
1 x Front Filter (included, installed by the user)
Water cooling support
Left Side：240mm radiator with a single 120mm fan
or
Left Side：120mm radiator with a 120mm fan
Max. Graphic card Length 350mm
(Support for High End Graphics Cards)
Max. CPU cooler height 105mm
PSU PS2 ATX Type (up to 140mm long)
